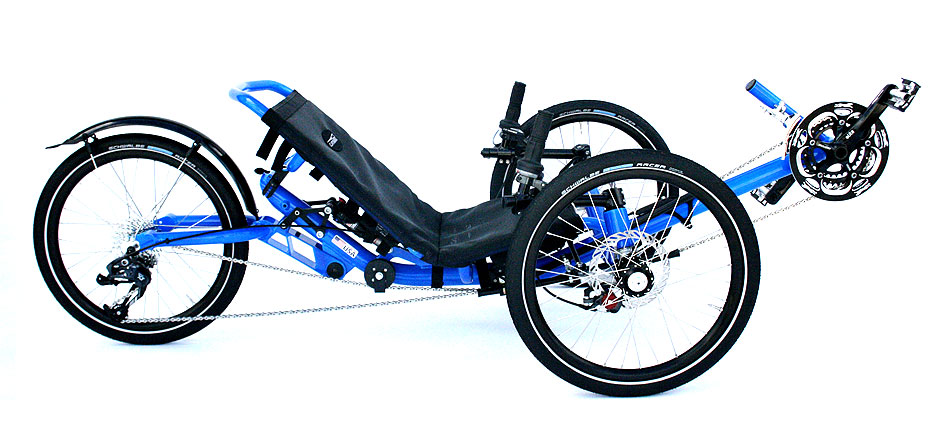

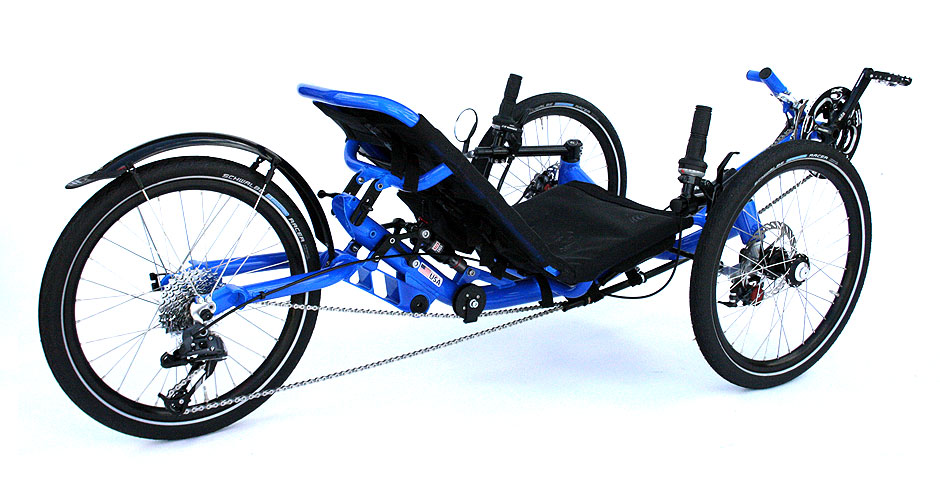

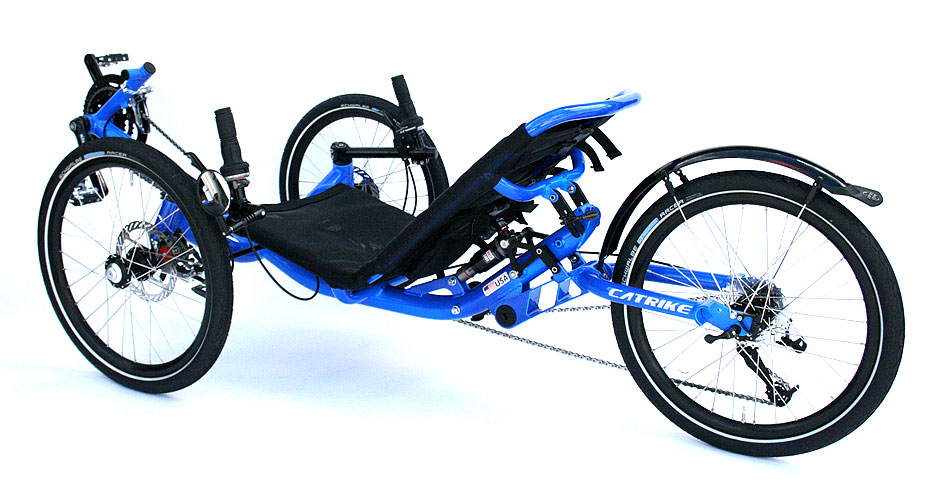

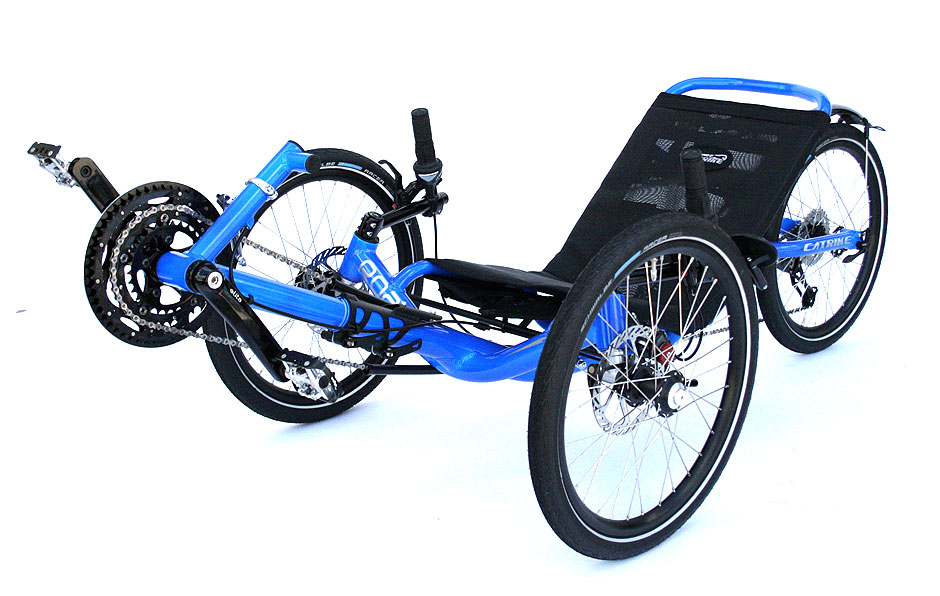

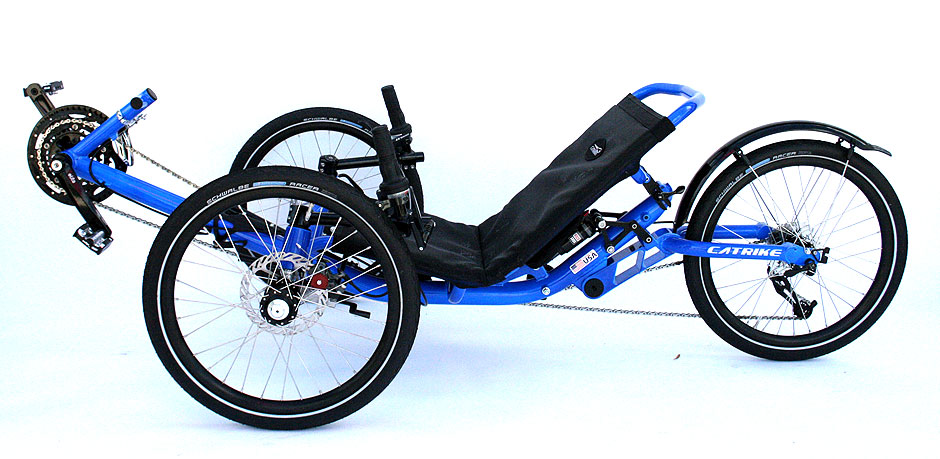

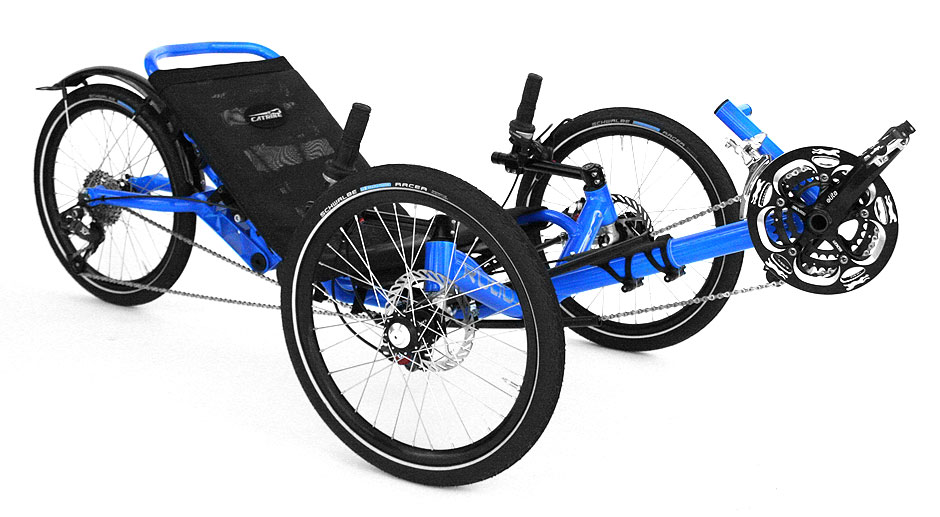

All New, Rear Suspended
A Premium multi-purpose Catrike. It is great for the trail, commuting or touring the World. Read the New Road Story.

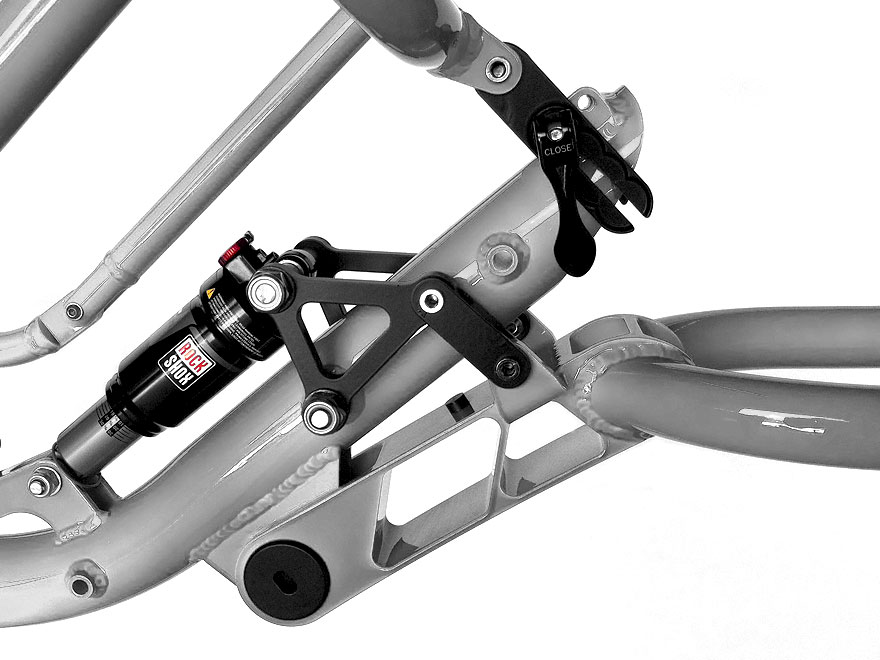

High-End Rochshox Monarch R Shock

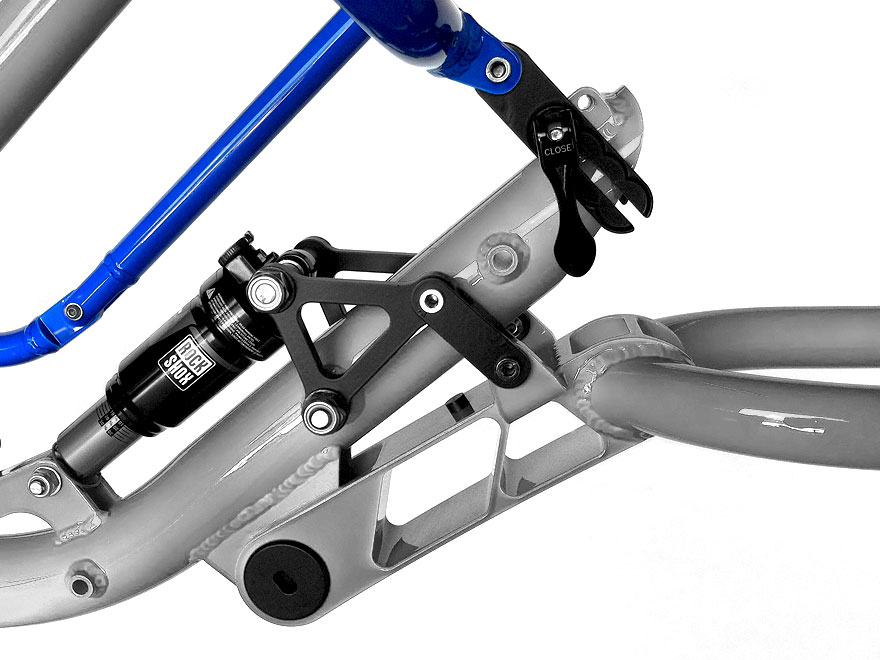

All New Angle Adjustable
Seat Back

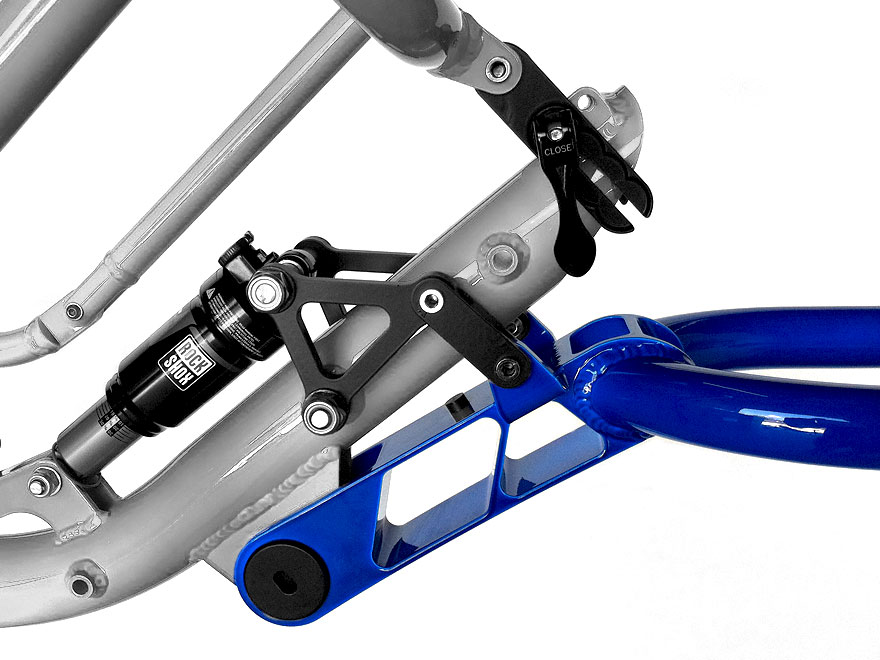

State of the Art, Architectural Swing Arm
Model Details
| MSRP |
Signature Color |
Gallery |
| $2,950 |
Electric Blue |
|
Technical Specs
| Frame & Geometry |
| Frame |
Frame made from strong and lightweight Aluminium |
| Total Length |
Varies |
| Total Width |
32 1/2" (826 mm) |
| Total Height |
25" (635 mm) |
| - Seat Folded |
24 1/2" (622 mm) |
| Bracket Height |
15" (381 mm) |
| Suspension Travel |
3" (76mm) |
| Seat Angle |
39° to 47° (from horizontal) |
| Seat Height |
9 1/4" (235 mm) |
| Seat Width |
14" (355 mm) |
| Wheel Base |
41 1/2" (1054 mm) |
| Wheel Track |
29" (737 mm) |
| Turning Circle |
16' 6# (5.03 m) |
| Turning Radius |
8' 3" (2.51 m) |
| Ground Clearance |
4" (102 mm) |
| Front Wheels |
406 (20") |
| Rear Wheel |
406 (20") |
| Weight * |
38 lbs (17.2 kg) |
| Rider Weight Limit |
275 lbs (125 kg) |
| Components* |
| Brakes |
Avid BB7 Disc Brakes |
| Brake Levers |
Avid Speed Dial 7/SL Levers |
| Front Derailleur |
Microshift |
| Rear Derailleur |
SRAM X-7 10 Speed |
| Shifters |
SRAM 500 TT Bar End Shifter |
| Crankset |
FSA Gossamer Pro Triple |
| Bottom Bracket |
FSA Road MegaExo |
| Chainrings |
30/39/52 |
| Chainring Guard |
FSA Guard 130BCD |
| Cassette |
SRAM 11/36 10 Speed |
| Chain |
KMC X10 |
| Idler |
TerraCycle |
| Headsets |
Zero Stack |
| Front Tires |
Schwalbe Marathon Racer |
| Rear Tire |
Schwalbe Marathon Racer |
| Shock |
Rockshox Monarch R |
| Features & Accessories |
| Rear Suspension |
| Adjustable Seat Back |
| Rear Fender |
| Flag Mount & Flag |
| Rear View Mirror |
| Combination Platform/Clipless Pedals |
| Computer Sensor Mount |
| Brake Lever Velcro Strap for Parking |
| No Brake Steer |
| Self Centering |
| Ackerman Steering Compensation |
| Structural Front Boom |
| Quick-Release Indexing Boom Clamp |
| Double Bend Frame |
| Aluminium Rod Ends |
| Low Friction PTFE Chain Tube |
* weight includes pedals, mirror, flag, computer mount and neck rest if standard on the model.
