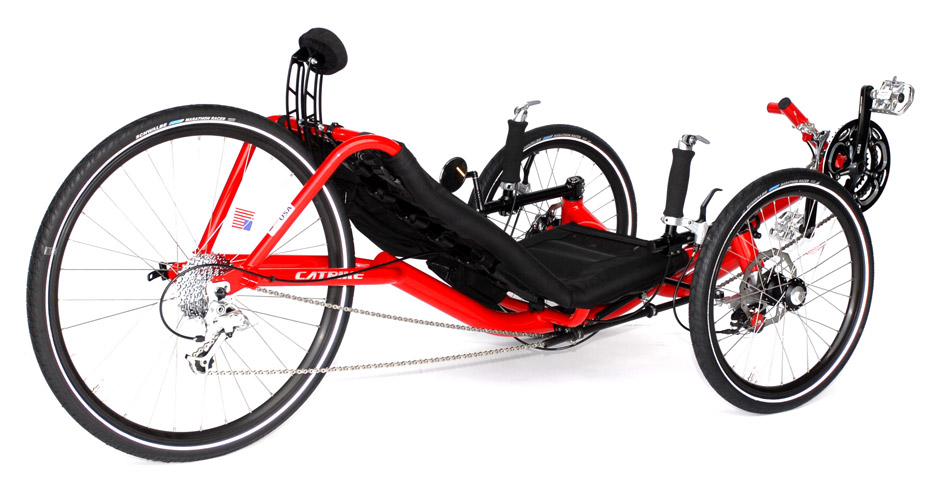

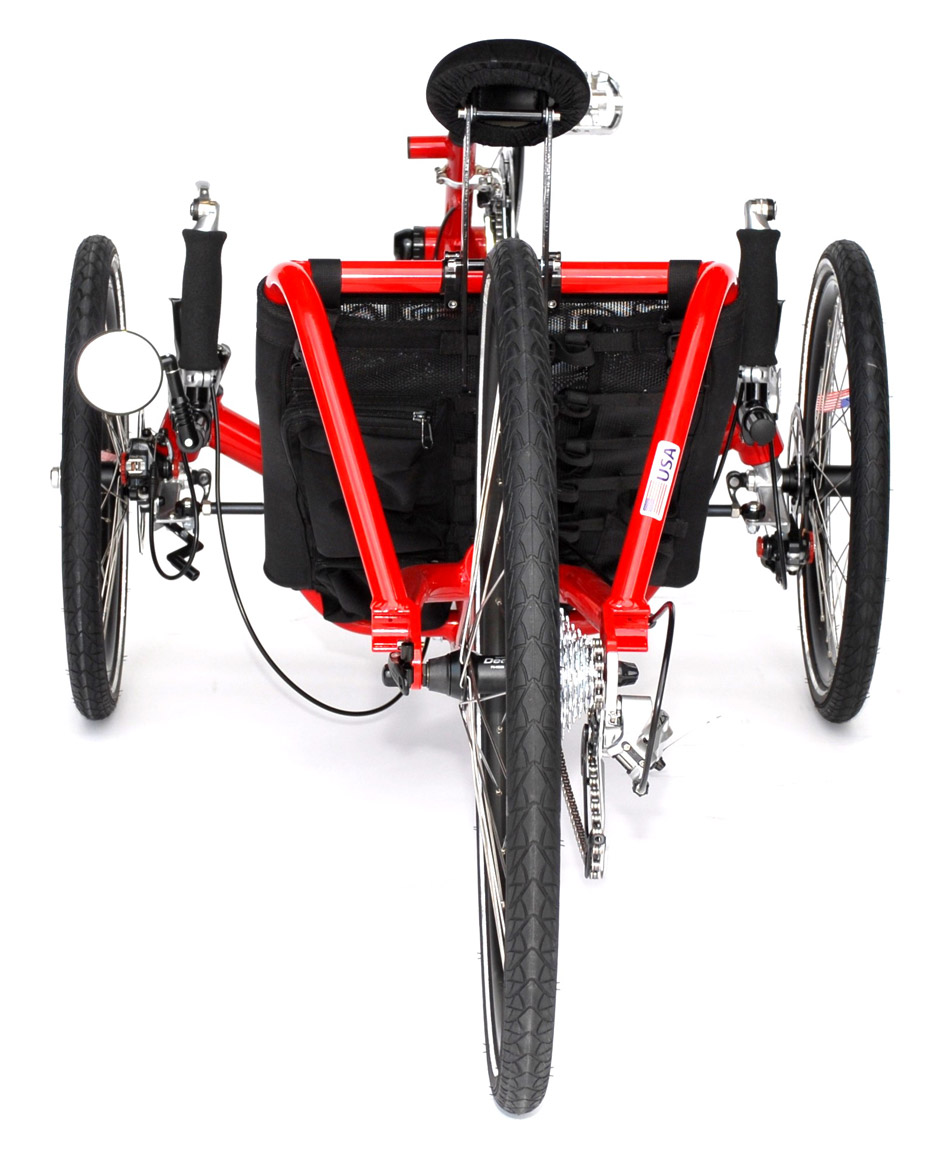

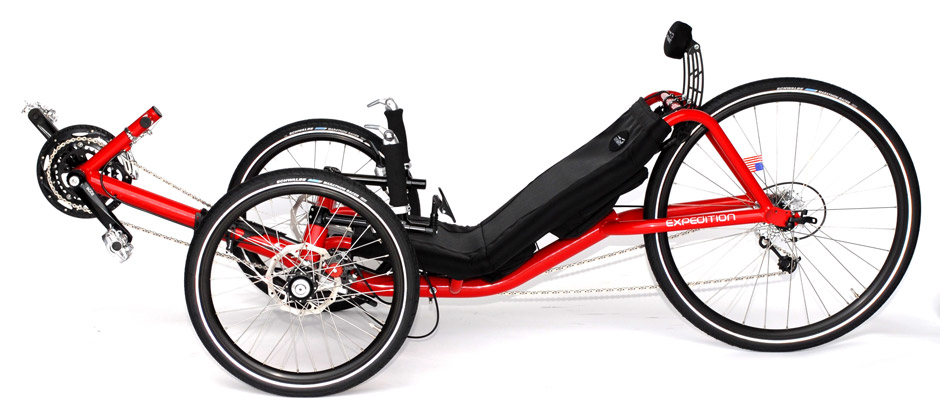

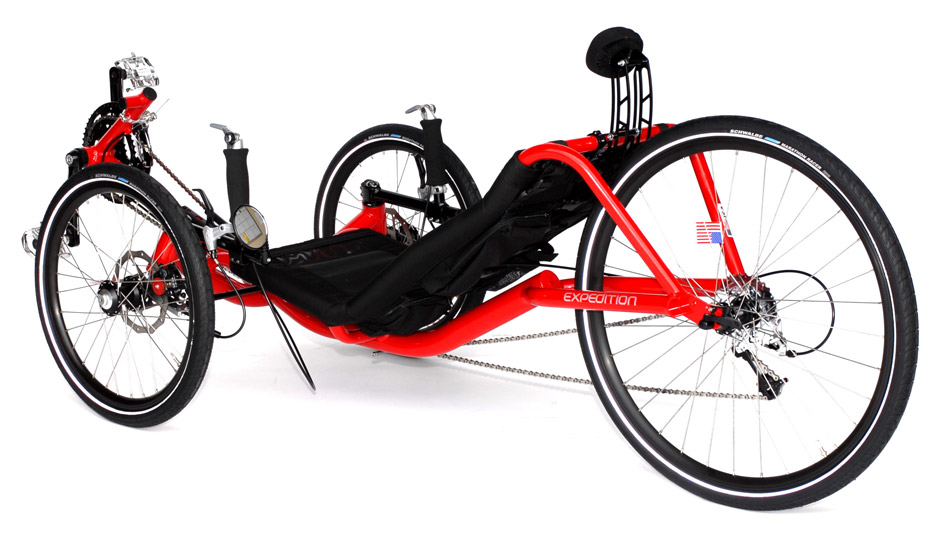

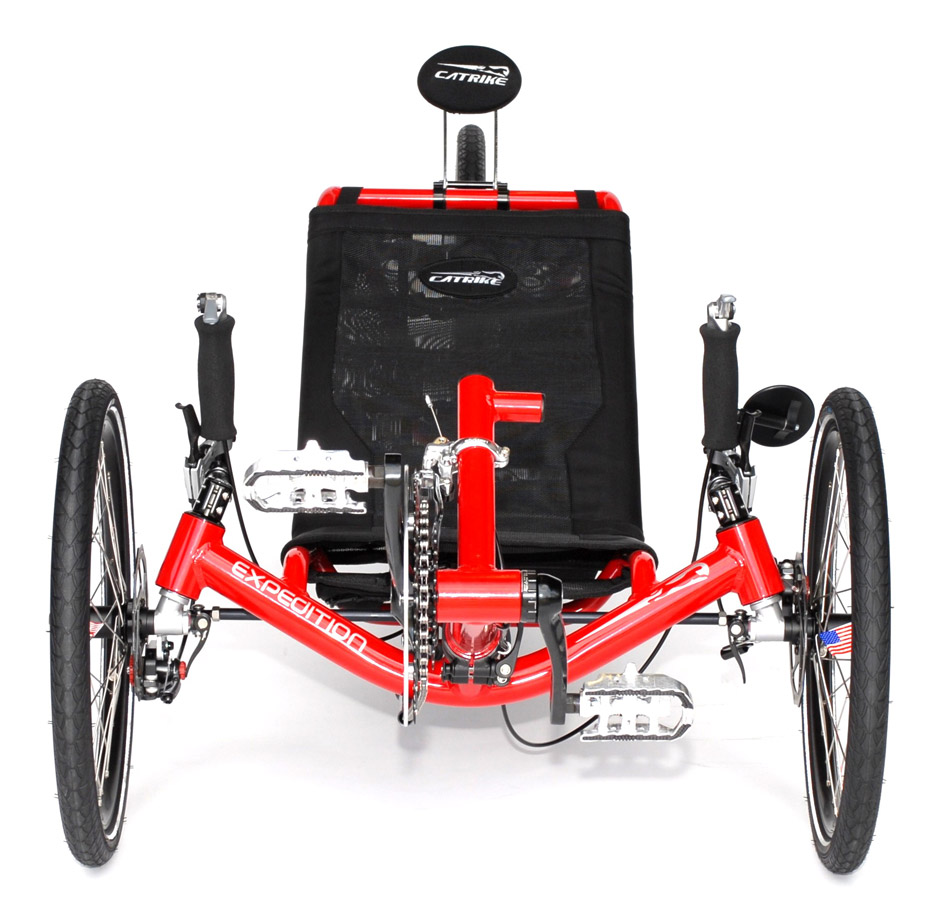

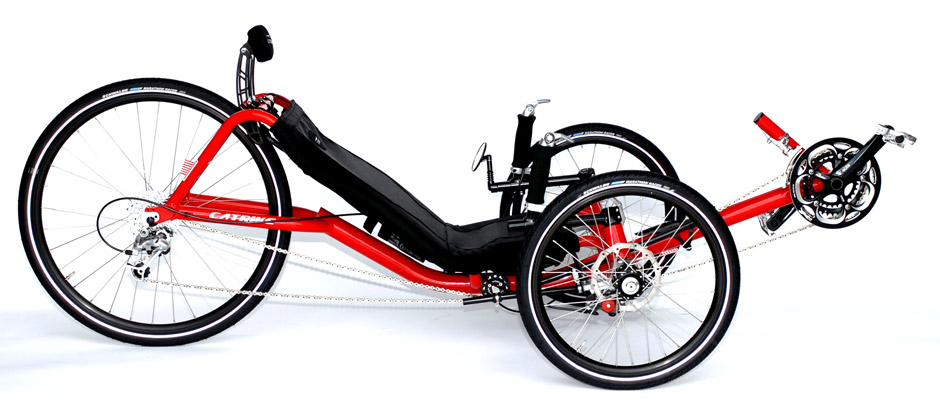

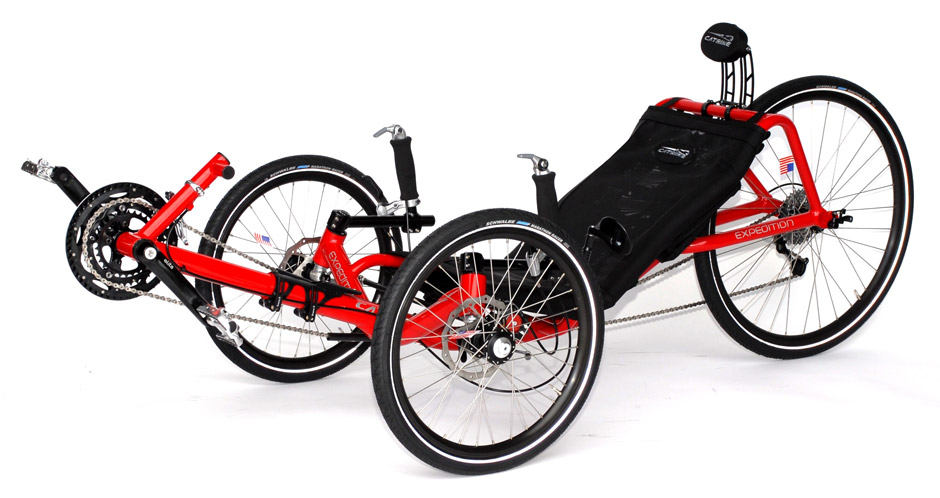

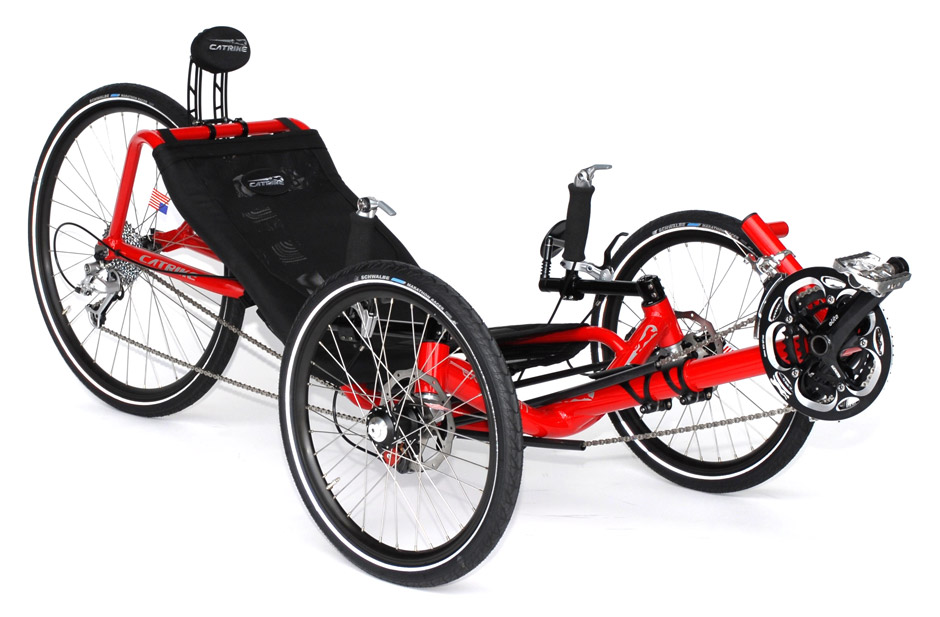

A Sport-Luxury Catrike with a wide track and long wheel base. It is capable of handling heavy loads for long distance touring and it is still a fast machine with a very wide gear range.
Model Details
| MSRP |
Signature Color |
Gallery |
| $2,550 |
Lava Red |
|
Technical Specs
| Frame & Geometry |
| Frame |
Space Frame made from strong and lightweight Aluminium |
| Total Length |
6' 7" (2.01 m) |
| Total Width |
33" (838 mm) |
| Total Height |
26" (660 mm) |
| Bracket Height |
16" (406 mm) |
| Seat Angle |
37° Ergo Seat (from horizontal) |
| Seat Height |
10" (254 mm) |
| Seat Width |
14" (355 mm) |
| Wheel Base |
43" (1092 mm) |
| Wheel Track |
29" (737 mm) |
| Turning Circle |
18' (5.49 m) |
| Turning Radius |
9' (2.74 m) |
| Ground Clearance |
4 1/4" (108 mm) |
| Front Wheels |
406 (20") |
| Rear Wheel |
559 (26") |
| Weight * |
35 lbs (15.9 kg) |
| Rider Weight Limit |
275 lbs (125 kg) |
| Components* |
| Brakes |
Avid BB7 Disc Brakes |
| Brake Levers |
Avid FR5 Flat Pull Levers |
| Front Derailleur |
Microshift |
| Rear Derailleur |
SRAM X-7 10 Speed |
| Shifters |
SRAM 500 TT Bar End Shifter |
| Crankset |
FSA Gossamer Pro Triple |
| Bottom Bracket |
FSA Road MegaExo |
| Chainrings |
30/39/52 |
| Chainring Guard |
FSA Guard 130BCD |
| Cassette |
SRAM 11/36 10 Speed |
| Chain |
KMC X10 |
| Idler |
TerraCycle |
| Headsets |
Zero Stack |
| Front Tires |
Schwalbe Marathon Racer |
| Rear Tire |
Schwalbe Marathon Racer |
| Features & Accessories |
| Space Neck Rest |
| Flag Mount & Flag |
| Rear View Mirror |
| Combination Platform/Clipless Pedals |
| Computer Sensor Mount |
| Brake Lever Velcro Strap for Parking |
| No Brake Steer |
| Self Centering |
| Ackerman Steering Compensation |
| Structural Front Boom |
| Quick-Release Indexing Boom Clamp |
| Ergo Seat |
| Double Bend Frame |
| Aluminium Rod Ends |
| Low Friction PTFE Chain Tube |
* weight includes pedals, mirror, flag, computer mount and neck rest if standard on the model.
